SYN-Seal®

Organic, HTHP Filtrate and Seepage Loss Eliminating LCM.

Product Summary

SYN-Seal® is a single sack, chemically modified resin and cellulose fiber compound that contains no asphalt or asphalt derivatives. SYN-Seal® is effective at both low and high temperatures and has a broad application in oil and synthetic base mud systems.

Download pdf

Physical Properties

Appearance: Dark Gray Powder
Specific Gravity (g/mL.): 1.56
Odor: Slight
pH in 1% solution: 6-8

Recommended Treatment

System Treatment: 6-10 ppb
Sweeps: 5-10 ppb along First Response® @ 10-30 ppb
Pill: SYN-Seal® can be run with First
Response® to maximize effectiveness in zones where there are whole mud losses

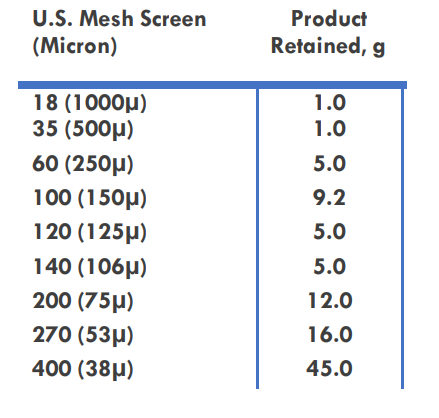

SYN-Seal® PSD

Red, round spheres are the unique phenolic resin that form a matrix like seal with the “wormlike “cellulose fiber inside the fracture.

Wellbore Stability Benefits

SYN-Seal® is compatible in all mud types.
Reduces differential sticking tendencies in low pressure sands.
Highly efficient at sealing micro-fractured formations while minimizing unstable wellbore situations.
SYN-Seal® has a secondary benefit of improved emulsion stability.
Excellent seepage and lost circulation control without damaging mud rheology.
Mixes easily through the hopper and has minimal losses over shaker screens and solids control equipment.

Handling and Storage

Proper PPE should be worn while handling this product. Minimize dust
exposure. Please review SDS before

View Safety Data Sheet

Packaging

SYN-Seal® is available in 25 lb. sacks, 50 sacks/pallet
